Oak Elegant (E5)

Elegant

Wall: 30" 39"

Elegant Series E5

Available in 30" 39" Height

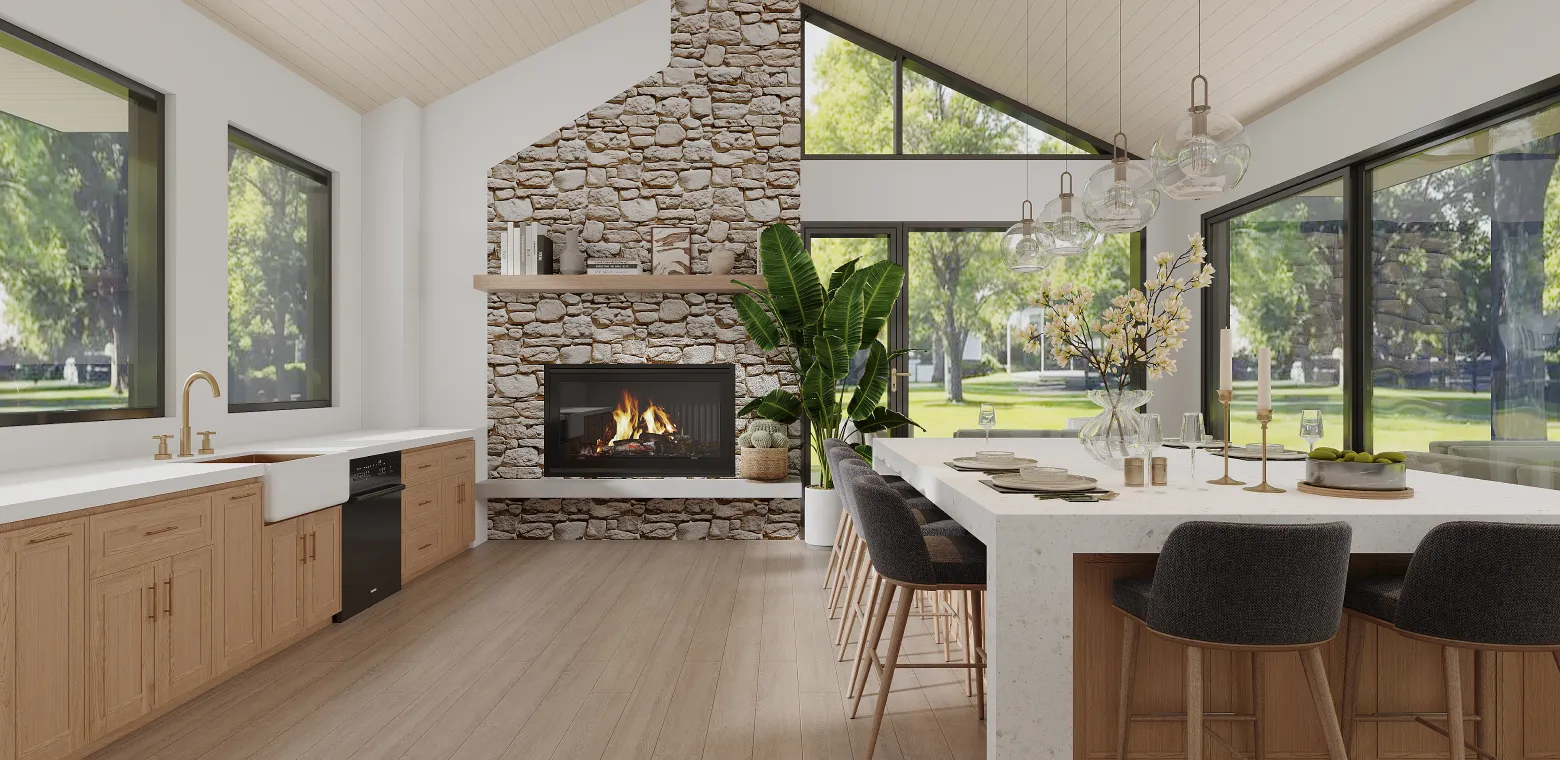

Oak Elegant combines the Elegant Series’ refined door profile with a warm natural oak finish and visible wood grain. Available in 30" and 39" wall cabinet heights. It shares the Elegant door style with White (E1); the same oak finish is also available in the Shaker Series (F5). Built with a solid birch frame and plywood box for dealers who need a premium natural-wood option.

SPECIFICATIONS

No.	Part Name	Specification
1	Drawer Front	¾" thick solid birch wood for the frame and MDF Center Panel for all painted cabinets.
2	Door	¾" thick solid birch wood for the frame and MDF Center Panel for all painted cabinets.
3	Interior Drawer	⅝" thick solid birch wood for the dovetailed drawer side panel, ⅜" thick plywood for the drawer box bottom panel
4	Shelf	¾" thick Plywood shelf in full depth with front and back finished edge
5	Side Panel	½" matching finish Plywood side panels, UV-coated
6	Toe Kick	½" thick and 4½" height matching finished plywood toe kick attached to the cabinet, UV-coated
7	Back Panel	½" matching finish Plywood back panels, UV-coated
8	Bracket	Metal bracket reinforcement for base cabinet
9	Drawer Glide	DTC brand with soft close and full extension under-mount
10	Cabinet Frame	¾" thick and 1½" wide solid birch wood face frame with double-dowel joint
11	Top Panel	½" thick plywood with UV-coated
12	Hinge	DTC brand soft close six ways adjustable
